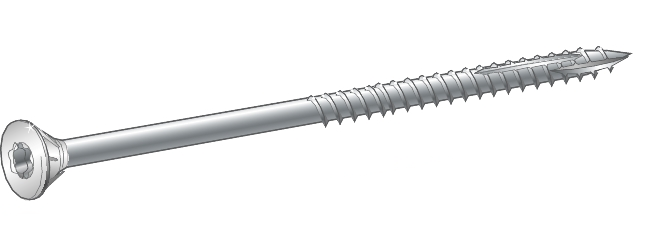

Essve puidukruvi, peitpea, läikivaks tsingitud
Essve puidukruvi, peitpea, läikivaks tsingitud
Hind: 1.90 € – 30.20 €
Lisainfot küsi julgesti siit
Lühikirjeldus
ESSVE kahe kiuteraga Cutters puidukruvi on mõeldud enamikuks monteerimistöödeks puitlaastplaatidesse, puitu, plasti, tüüblisse jmt.
Hinnatabel
| Tootekood | Mõõdud | Saadavus | Hind | ||
|---|---|---|---|---|---|
| 1 | 116101 | 3x20 /100tk | 1.90 € |
Toode on korvis.
|
|
| 2 | 116103 | 3x30 /100tk | 2.15 € |
Toode on korvis.
|
|
| 3 | 116104 | 3x35/100tk | 2.35 € |
Toode on korvis.
|
|
| 4 | 116152 | 3x40 /100tk | 2.65 € |
Toode on korvis.
|
|
| 5 | 116106 | 3,5x20 /100tk | 2.05 € |
Toode on korvis.
|
|
| 6 | 116107 | 3,5x25 /100tk | 2.15 € |
Toode on korvis.
|
|
| 7 | 116108 | 3,5x30 /100tk | 2.50 € |
Toode on korvis.
|
|
| 8 | 116109 | 3,5x35/100tk | 2.75 € |
Toode on korvis.
|
|
| 9 | 116110 | 3,5x40 /100tk | 3.02 € |
Toode on korvis.
|
|
| 10 | 7317761113270 | 3,5x50 /100tk | 4.05 € |
Toode on korvis.
|
|
| 11 | 7317761113300 | 4x30 /100tk | 2.85 € |
Toode on korvis.
|
|
| 12 | 116114 | 4x35 /100tk | 2.95 € |
Toode on korvis.
|
|
| 13 | 116115 | 4x40 /100tk | 3.20 € |
Toode on korvis.
|
|
| 14 | 116116 | 4x45 /100tk | 4.20 € |
Toode on korvis.
|
|
| 15 | 116117 | 4x50 /100tk | 3.85 € |
Toode on korvis.
|
|
| 16 | 116118 | 4x60 /100tk | 5.45 € |
Toode on korvis.
|
|
| 17 | 116119 | 4,5x30/100tk | 3.30 € |
Toode on korvis.
|
|
| 18 | 116155 | 4,5x35/100tk | 3.85 € |
Toode on korvis.
|
|
| 19 | 116120 | 4,5x40 /100tk | 3.75 € |
Toode on korvis.
|
|
| 20 | 116121 | 4,5x50 /100tk | 4.55 € |
Toode on korvis.
|
|
| 21 | 116122 | 4,5x60 /100tk | 6.80 € |
Toode on korvis.
|
|
| 22 | 116123 | 4,5x70 /100tk | 6.80 € |
Toode on korvis.
|
|
| 23 | 116157 | 5x35 /100tk | 4.20 € |
Toode on korvis.
|
|
| 24 | 116126 | 5x40 /100tk | 4.45 € |
Toode on korvis.
|
|
| 25 | 116127 | 5x50 /100tk | 5.40 € |
Toode on korvis.
|
|
| 26 | 116128 | 5x60/100tk | 7.20 € |
Toode on korvis.
|
|
| 27 | 116129 | 5x70 /100tk | 7.95 € |
Toode on korvis.
|
|
| 28 | 116130 | 5x80 /100tk | 9.30 € |
Toode on korvis.
|
|
| 29 | 116131 | 5x90 /100tk | 11.10 € |
Toode on korvis.
|
|
| 30 | 116132 | 5x100 /100tk | 12.40 € |
Toode on korvis.
|
|
| 31 | 116159 | 6x40/100tk | 6.95 € |
Toode on korvis.
|
|
| 32 | 116140 | 6x50/100tk | 7.65 € |
Toode on korvis.
|
|
| 33 | 116141 | 6x60/100tk | 10.20 € |
Toode on korvis.
|
|
| 34 | 116142 | 6x70/100tk | 11.30 € |
Toode on korvis.
|
|
| 35 | 116143 | 6x80/100tk | 13.40 € |
Toode on korvis.
|
|
| 36 | 116160 | 6x90/100tk | 16.90 € |
Toode on korvis.
|
|
| 37 | 7317761113591 | 6x100/100tk | 19.80 € |
Toode on korvis.
|
|
| 38 | 116145 | 6x110/100tk | 19.20 € |
Toode on korvis.
|
|
| 39 | 116146 | 6x120/100tk | 21.10 € |
Toode on korvis.
|
|
| 40 | 116147 | 6x130/100tk | 24.60 € |
Toode on korvis.
|
|
| 41 | 116148 | 6x140/100tk | 25.95 € |
Toode on korvis.
|
|
| 42 | 116149 | 6x150/100tk | 30.20 € |
Toode on korvis.
|
Hind kaupluses võib erineda. Loe lähemalt e-poe müügitingimusi.
- Tootekirjeldus
Kirjeldus
Kruvi on valmistatud karastatud terasest ja see on läikivaks tsingitud pinnatöötlusega, CorrSeali pinnatöötlusega (väliskeskkonnale) või roostevabast terasest A2 väga keeruka keskkonna jaoks, nagu nt mereline keskkond. TX-pesa/otsik.
Kruvil on kaks kiutera. See tähendab, et sissekruvimismoment kõvemates puitmaterjalides on väga madal ning pragunemine minimaalne.
Kruvidel, mis on pikemad kui 160 mm, on üks ekstra freeskeere kohe tavalise puidukeerme järel, et kergendada pikemate ja jämedamate kruvide montaaži.
Kruvipea on varustatud kuue lõikava soonega, mis süvistavad kruvi ja jätavad sileda pindudeta pinna. Kruvi täidab CE nõuet EN 14592 järgi.
Montaaž
Soovituslik pöörete arv: 400-1200 p/min.
Spetsifikatsioon
|
Läikivaks tsingitud
|
CorrSeal
|
Roostevaba teras
|
|
|
Materjal
|
Karastatud teras SAE C1022
|
Karastatud teras SAE C1022
|
Roostevaba teras A2, vaha
|
|
Pinnatöötlus
|
Läikivaks tsingitud 5 µm
|
CorrSeal
|
–
|
|
Korrosiooniklass
|
C1
|
C4
|
C4
|
|
Tugevuspiir, fuk
|
–
|
–
|
Min 500 MPa
|
|
Voolavuspiir, fyk
|
–
|
–
|
Min 350-400 MPa
|
|

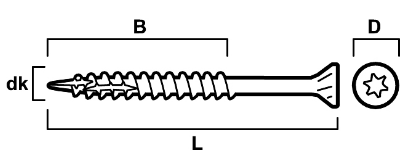

Art. nr
|
Mõõdud
dk × L mm |
D
mm |
B
mm |
Otsaku
nr |
Kogus pakendis
|
|
116150
|
3,0 × 12
|
6,0
|
9,0
|
TX10
|
200
|
|
116151
|
3,0 × 16
|
6,0
|
13,0
|
TX10
|
200
|
|
116101
|
3,0 × 20
|
6,0
|
17,0
|
TX10
|
200
|
|
116102
|
3,0 × 25
|
6,0
|
18,0
|
TX10
|
200
|
|
116103
|
3,0 × 30
|
6,0
|
18,0
|
TX10
|
200
|
|
116104
|
3,0 × 35
|
6,0
|
24,0
|
TX10
|
200
|
|
116152
|
3,0 × 40
|
6,0
|
24,0
|
TX10
|
200
|
|
116105
|
3,5 × 16
|
7,0
|
12,0
|
TX10
|
200
|
|
116106
|
3,5 × 20
|
7,0
|
16,0
|
TX10
|
200
|
|
116107
|
3,5 × 25
|
7,0
|
18,0
|
TX10
|
200
|
|
116108
|
3,5 × 30
|
7,0
|
18,0
|
TX10
|
200
|
|
116109
|
3,5 × 35
|
7,0
|
24,0
|
TX10
|
200
|
|
116110
|
3,5 × 40
|
7,0
|
24,0
|
TX10
|
200
|
|
116153
|
3,5 × 50
|
7,0
|
30,0
|
TX10
|
200
|
|
116111
|
4,0 × 20
|
8,0
|
16,0
|
TX20
|
200
|
|
116112
|
4,0 × 25
|
8,0
|
18,0
|
TX20
|
200
|
|
116113
|
4,0 × 30
|
8,0
|
18,0
|
TX20
|
200
|
|
116114
|
4,0 × 35
|
8,0
|
24,0
|
TX20
|
200
|
|
116115
|
4,0 × 40
|
8,0
|
24,0
|
TX20
|
200
|
|
116116
|
4,0 × 45
|
8,0
|
30,0
|
TX20
|
200
|
|
116117
|
4,0 × 50
|
8,0
|
30,0
|
TX20
|
200
|
|
116118
|
4,0 × 60
|
8,0
|
36,0
|
TX20
|
100
|
|
116154
|
4,5 × 25
|
9,0
|
18,0
|
TX20
|
200
|
|
116119
|
4,5 × 30
|
9,0
|
18,0
|
TX20
|
200
|
|
116155
|
4,5 × 35
|
9,0
|
24,0
|
TX20
|
200
|
|
116120
|
4,5 × 40
|
9,0
|
24,0
|
TX20
|
200
|
|
116121
|
4,5 × 50
|
9,0
|
30,0
|
TX20
|
200
|
|
116122
|
4,5 × 60
|
9,0
|
36,0
|
TX20
|
100
|
|
116123
|
4,5 × 70
|
9,0
|
42,0
|
TX20
|
100
|
|
116156
|
5,0 × 25
|
10,0
|
18,0
|
TX25
|
200
|
|
116125
|
5,0 × 30
|
10,0
|
18,0
|
TX25
|
200
|
|
116157
|
5,0 × 35
|
10,0
|
24,0
|
TX25
|
200
|
|
116126
|
5,0 × 40
|
10,0
|
24,0
|
TX25
|
200
|
|
116127
|
5,0 × 50
|
10,0
|
30,0
|
TX25
|
200
|
|
116158
|
5,0 × 55
|
10,0
|
36,0
|
TX25
|
100
|
|
116128
|
5,0 × 60
|
10,0
|
36,0
|
TX25
|
100
|
|
116129
|
5,0 × 70
|
10,0
|
42,0
|
TX25
|
100
|
|
116130
|
5,0 × 80
|
10,0
|
50,0
|
TX25
|
100
|
|
116131
|
5,0 × 90
|
10,0
|
60,0
|
TX25
|
100
|
|
116132
|
5,0 × 100
|
10,0
|
60,0
|
TX25
|
100
|
|
116133
|
5,0 × 120
|
10,0
|
68,0
|
TX20
|
100
|
|
116159
|
6,0 × 40
|
12,0
|
24,0
|
TX30
|
200
|
|
116140
|
6,0 × 50
|
12,0
|
30,0
|
TX30
|
200
|
|
116141
|
6,0 × 60
|
12,0
|
36,0
|
TX30
|
100
|
|
116142
|
6,0 × 70
|
12,0
|
42,0
|
TX30
|
100
|
|
116143
|
6,0 × 80
|
12,0
|
50,0
|
TX30
|
100
|
|
116160
|
6,0 × 90
|
12,0
|
60,0
|
TX30
|
100
|
|
116144
|
6,0 × 100
|
12,0
|
60,0
|
TX30
|
100
|
|
116145
|
6,0 × 110
|
12,0
|
60,0
|
TX30
|
100
|
|
116146
|
6,0 × 120
|
12,0
|
68,0
|
TX30
|
100
|
|
116147
|
6,0 × 130
|
12,0
|
72,0
|
TX30
|
100
|
|
116148
|
6,0 × 140
|
12,0
|
72,0
|
TX30
|
100
|
|
116149
|
6,0 × 150
|
12,0
|
72,0
|
TX30
|
100
|
